TF-NS1 nano-heating spray booth
TF-NS1 nano-heating spray booth

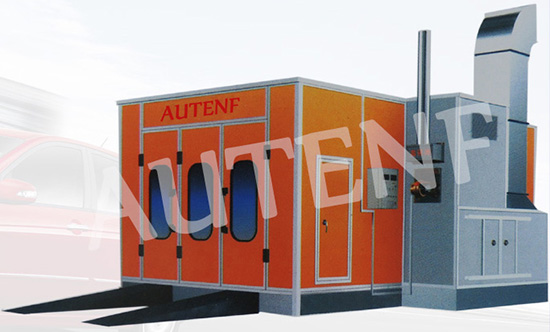

Note: picture is for reference only.
| Product name | electrical heating spray booth |
| Model name | TF-ES3 |
| Inside size | 6900 x 3900 x 2650 mm (L*W*H) |
| Outside size | 7000 x 5350 x 3400 mm (L*W*H) |
| Main door | 4 folds, 3000 x 2610 mm (W*H), high strength structure + tempered glass |
| Side door | 1 fold, 650 x 2000 mm (W*H) |
| Wall panel | 50 mm EPS + 0.45 mm steel x 2 |
| Basement | galvanized steel assemble, height is 280mm, 3 rows of steel grids, 2 rows of corrugated plates |
| Ramp | 2 ramps, 970 x 2000 mm each |
| Lighting | ceiling light: 32 pc x 16 w LED light, >=800 lux |
| Inlet fan | 2 x 3 KW |
| Outlet fan | 1 x 5.5 KW |
| Heating | 10 units x 3 kW nano-heating board |
| Filtering |
primary filter: to filter granules > 10 μm ceiling filter: to filter granules > 4 μm, filtering rate >= 99% floor filter: fiberglass filter |
| Control system | earth leakage protection, over temperature alarm. missing item protection, thermal overlad protection, time setting, temperature setting, painting, heating, lighting, power supply, emergency stop, etc. |
| Total power | 58 kw, 380V 3ph 50 hz |
