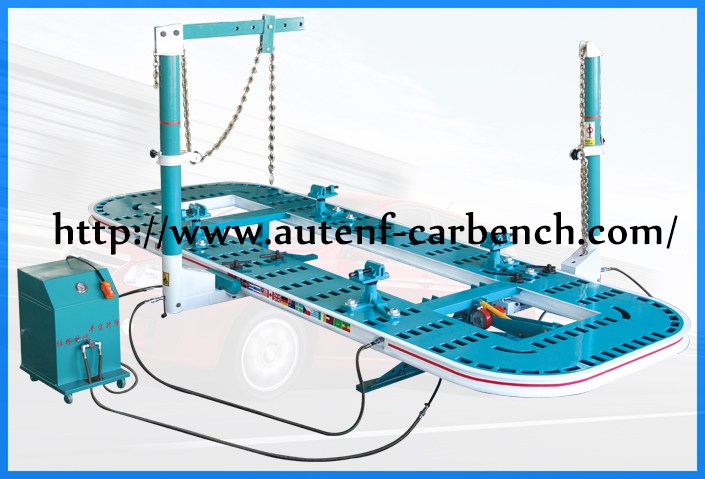

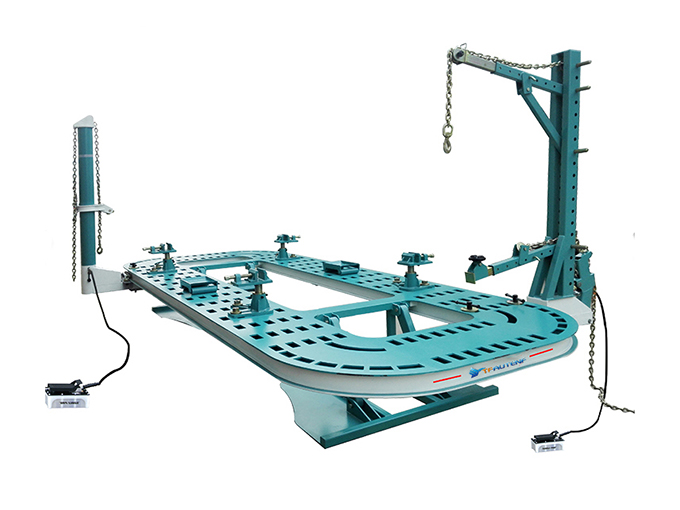

ATU-MS manganese steel car bench

ATU-MS manganese steel car bench

popular auto frame alignment machine




 Power unit


 Platform material

 manganese steel

 Platform size

 5200*2200 mm

 Platform ring width

 610 mm

 Platform working height

 550 mm

 Lifting capacity

 3500 KG

 Pulling tower quantity

 3 pc

 Pulling power

 10 tons/98 KN

 Pulling range

 360 degree

 Hydraulic pressure

 70 Mpa

 Pneumatic pressure

 0.8 Mpa

 Gross weight

 2400 kg


1. Tiltable manganese steel platform allows easy drive on and off of any vehicle;
2. Thick manganese steel platform, the whole platform is made up of large CNC cutting equipment processing, highly flatness, strong strength, no blind area of working stretch;
3. Combination type of pulling tower, strong and effective, all-round repair body and car roof and so on;
4. Adopting import highly quality hydraulic pump, powerful, low failure rate (electric box optional);
5. Hydraulic system has large pulling capacity, long lifespan and low malfunction;
6. With high strength pulling accessories, it can recover any car distortion;

Keywords: electric car bench, electric-hydraulic
