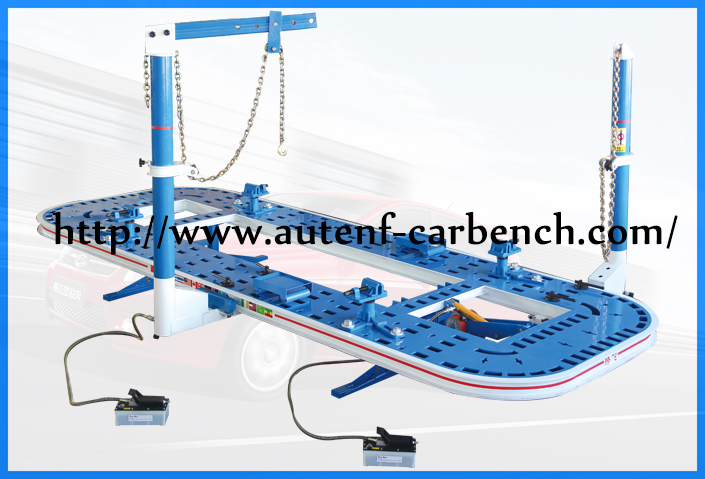

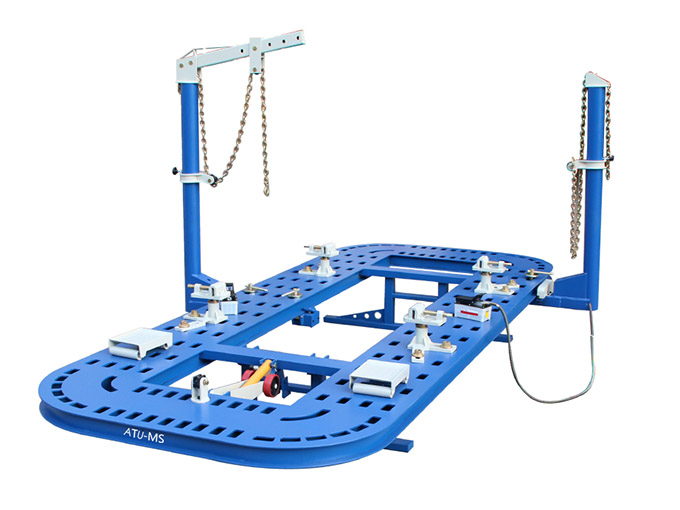

ATU-MS1 car frame machine

ATU-MS1 car frame machine

new model auto frame repair bench with floor frame machine


Specification Standard Type Extended Type
platform length 5200 mm 5600 mm
platform width 2100 mm 2200 mm
platform height 500 mm 500 mm
pulling power 10 tons/98 KN 10 tons/98 KN
pulling range 360 degree 360 degree
hydraulic pressure 70 Mpa 70 Mpa
pneumatic pressure 0.8 Mpa 0.8 Mpa
lifting capacity 3500 kg 3500 kg
lifting type tiltable type tiltable type
weight 2400 kg 2500 kg


1. with hose of floor frame machine, it is more convenient and easier to operate;
2. tiltable
manganese steel platform allows easy drive on and off of any vehicle;
AUTENF clamps anchor most vehicles rock-solid;
4. combination of overhead puller and common puller enlarges pulling power and repair scope;
5. dead car dolly and wheel stand helps to load vehicles with damaged wheels onto platform easily;
6. air pump and electric pump is optional at your choice;
7. hydraulic system has large pulling capacity, long lifespan and low malfunction;
8. with high strength pulling accessories, it can recover any car distortion;

Keywords: car bench, auto frame alignment machine hole
